WMAP

Classification: Assessment Methodologies / Vulnerability Assessment
Targets: 192.229.69.3 (WMAP scan - Apache 2.4.18 Ubuntu) and 192.159.71.3 (http_put test)

1. Executive Summary

WMAP is Metasploit’s web application scanning plugin. In this lab we load WMAP, define the target site/target, and run the full set of web modules against an Apache 2.4.18 server, enumerating the server banner, allowed methods, robots.txt, directories and files. We then use the http_put auxiliary module to confirm that a directory (/data/) is writable, uploading and reading back a test file.

2. Setup

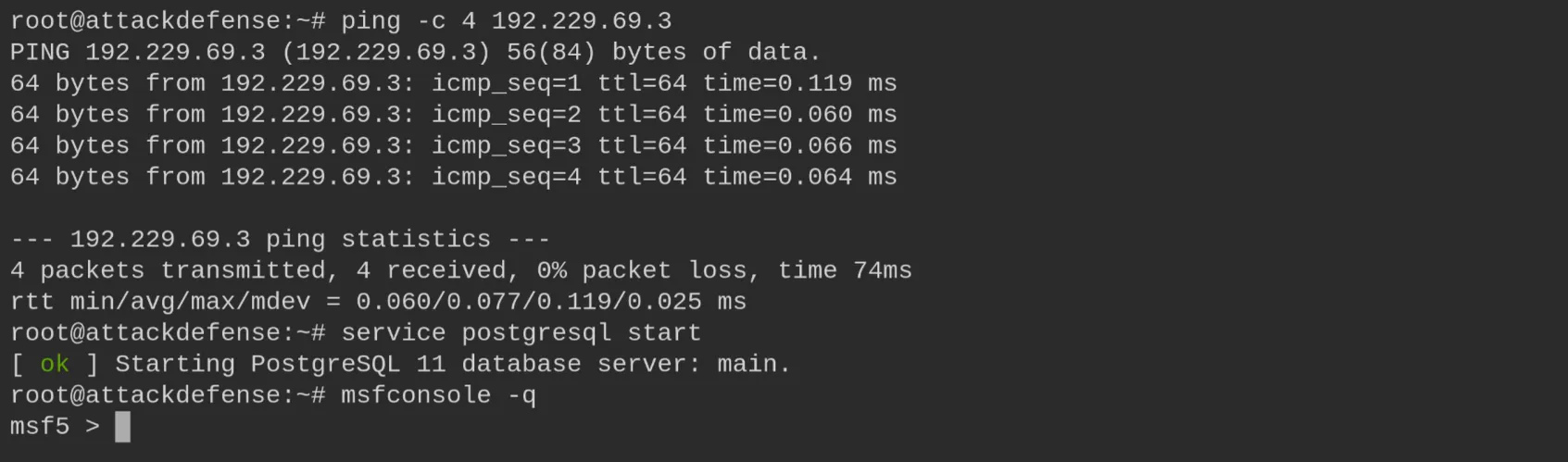

After confirming connectivity, we start PostgreSQL and launch MSF Console.

ping -c 4 192.229.69.3
service postgresql start
msfconsole -q

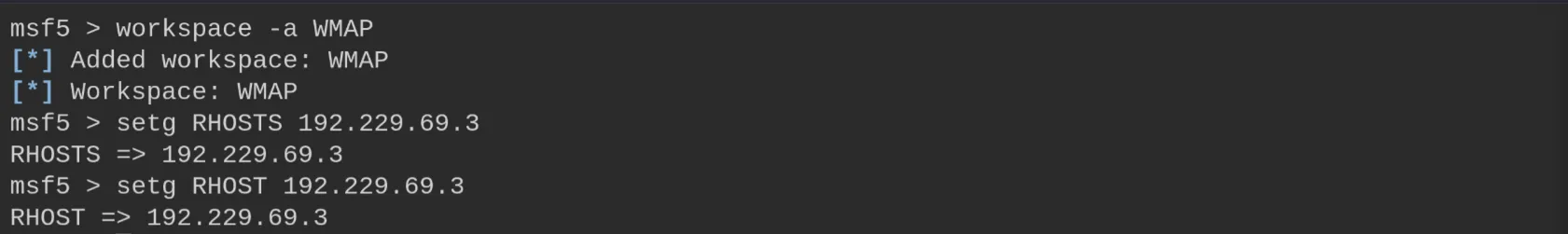

We create a dedicated workspace and set the global target variables.

workspace -a WMAP
setg RHOSTS 192.229.69.3
setg RHOST 192.229.69.3

3. Loading WMAP

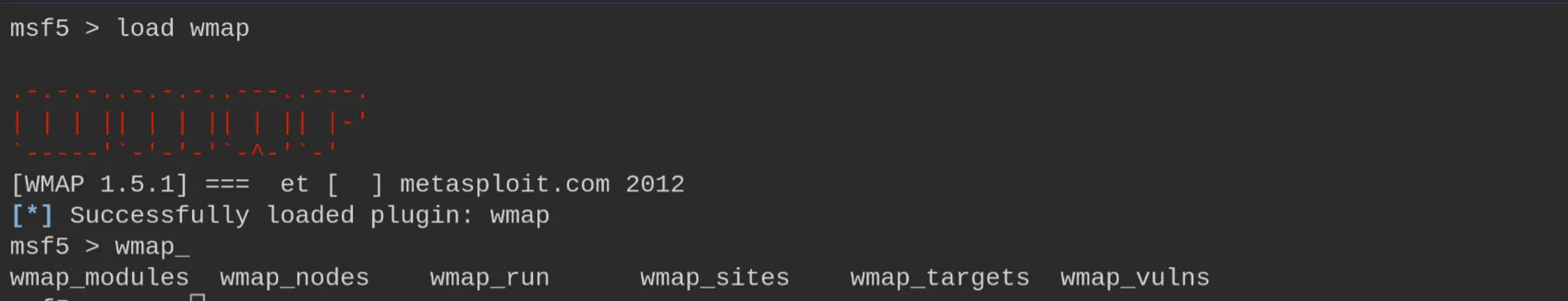

load wmap

The plugin exposes the wmap_sites, wmap_targets, wmap_run, wmap_nodes, wmap_modules and wmap_vulns commands.

4. Defining Site & Target

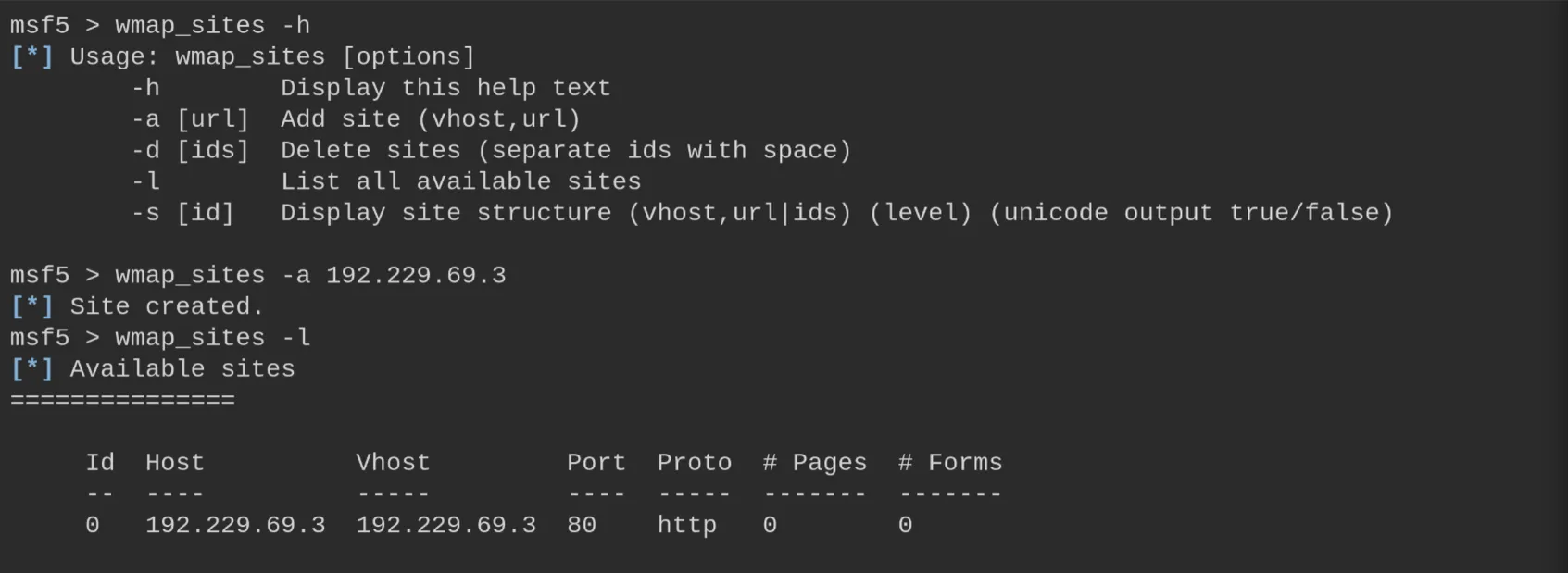

wmap_sites -a 192.229.69.3
wmap_sites -l

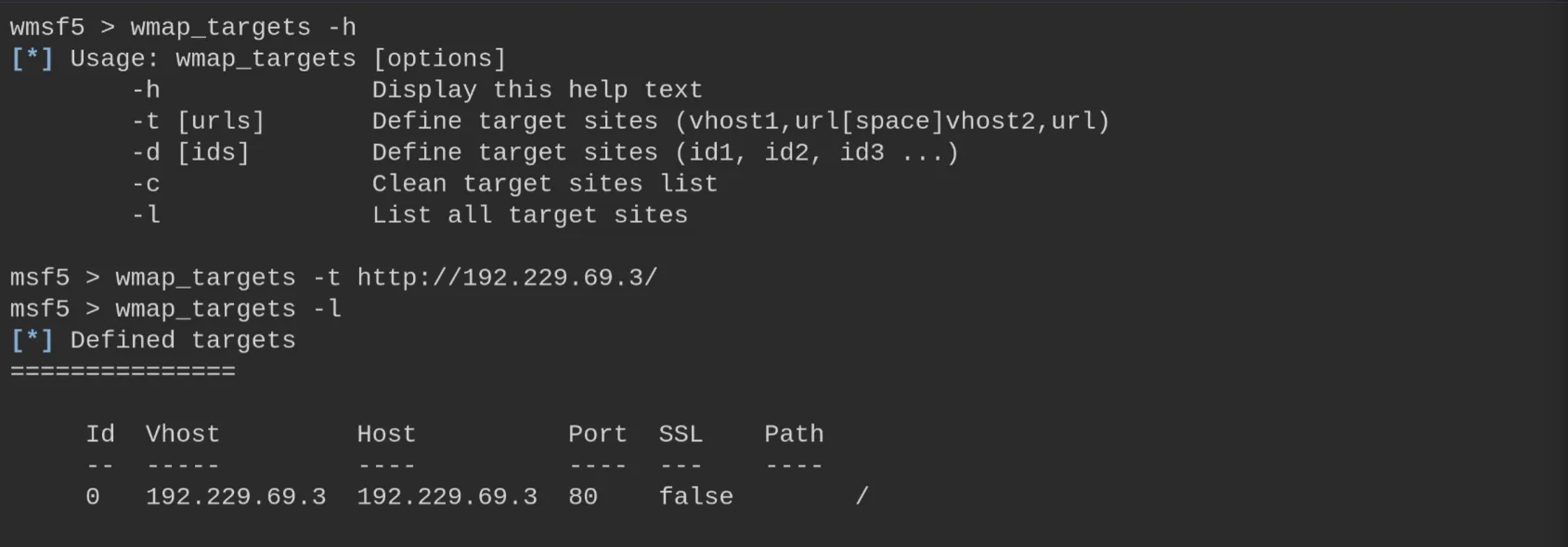

wmap_targets -t http://192.229.69.3/
wmap_targets -l

5. Listing the Enabled Modules

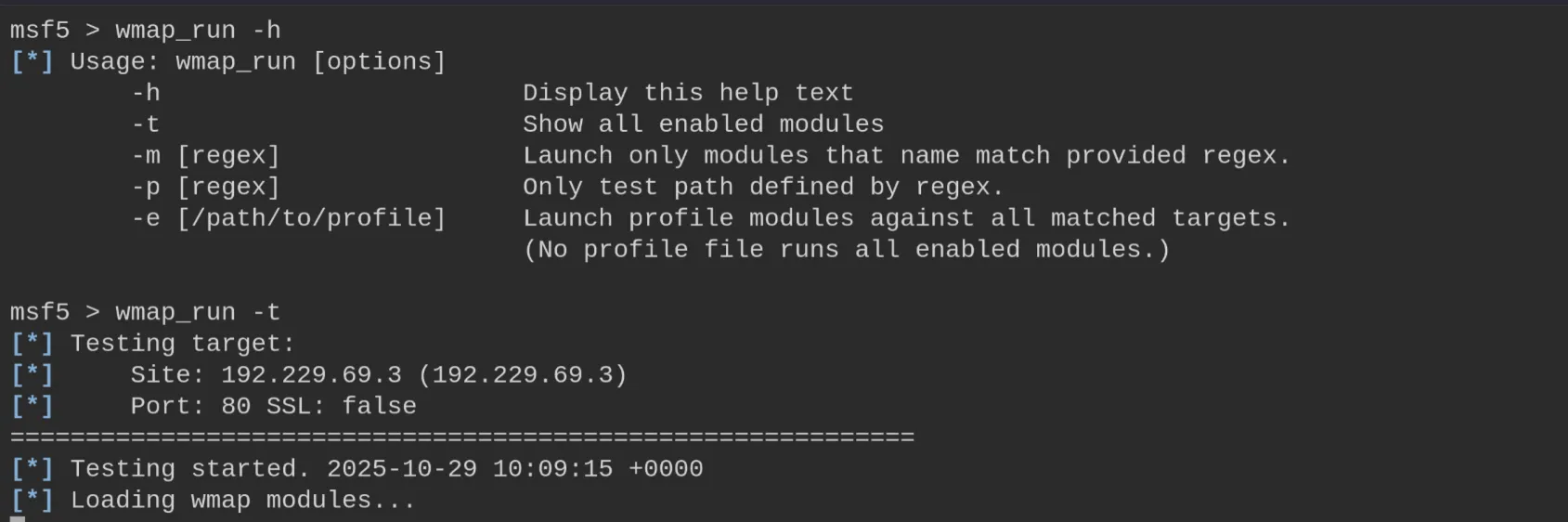

wmap_run -t

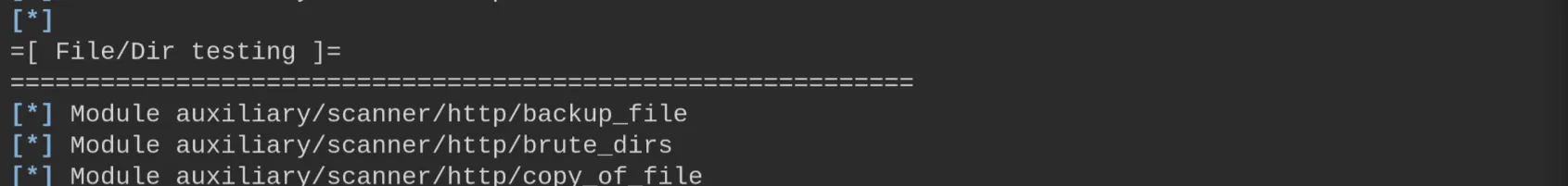

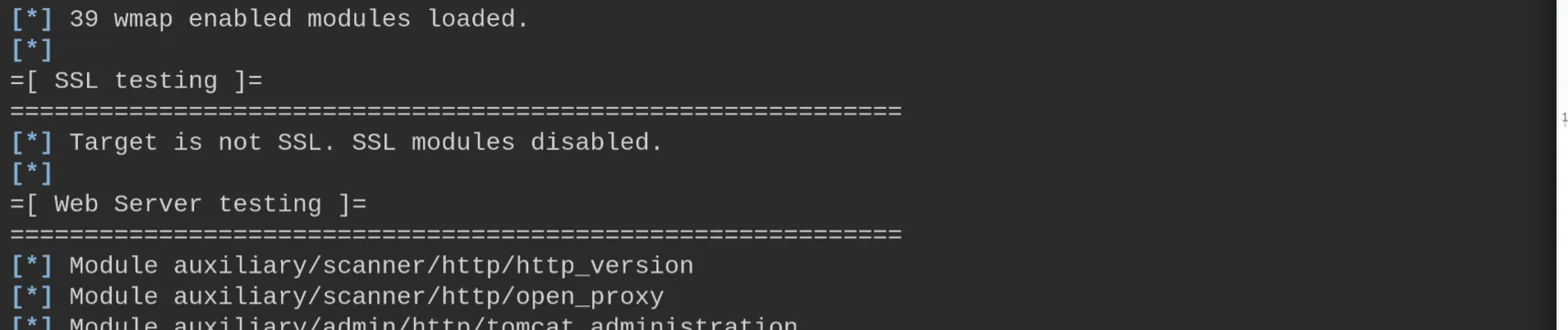

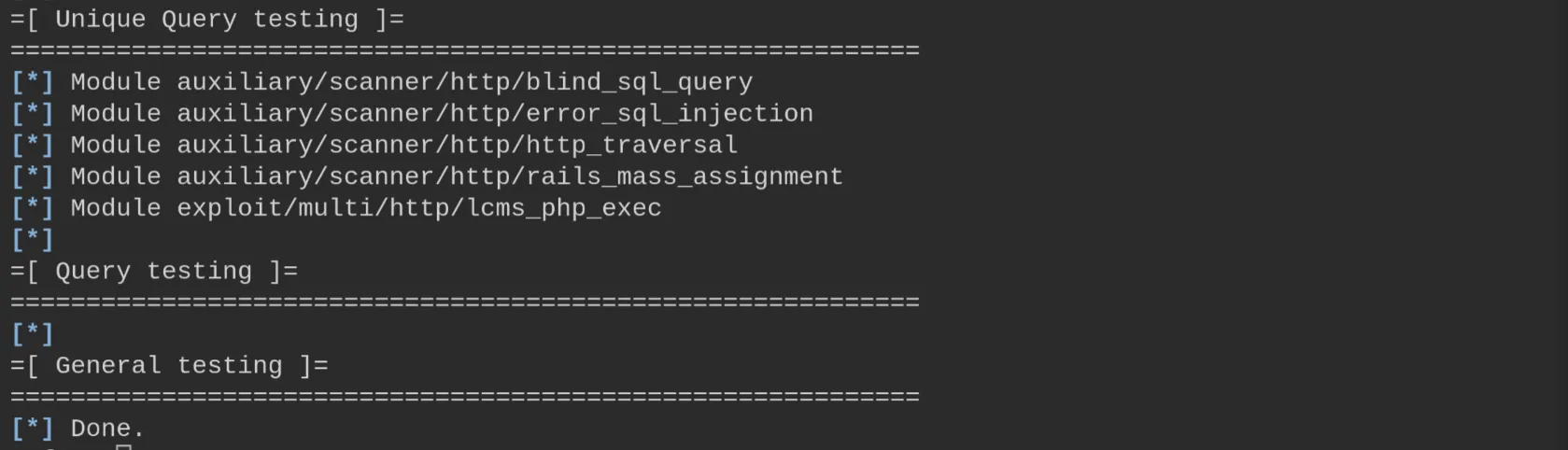

39 modules are enabled, grouped by category (SSL, Web Server, File/Dir, Query…).

6. Running the Scan

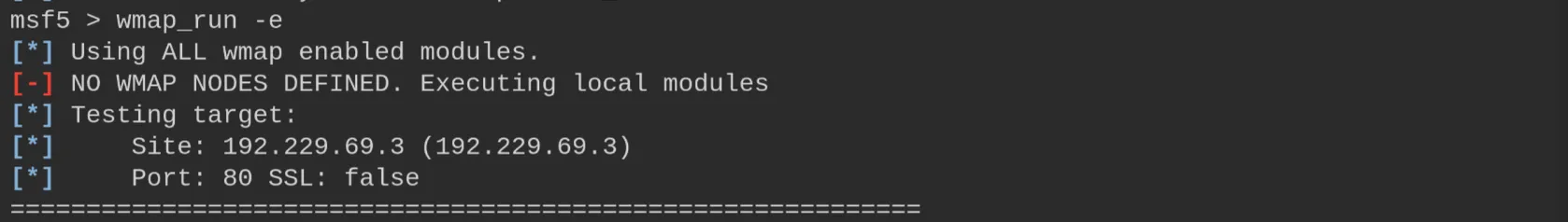

wmap_run -e

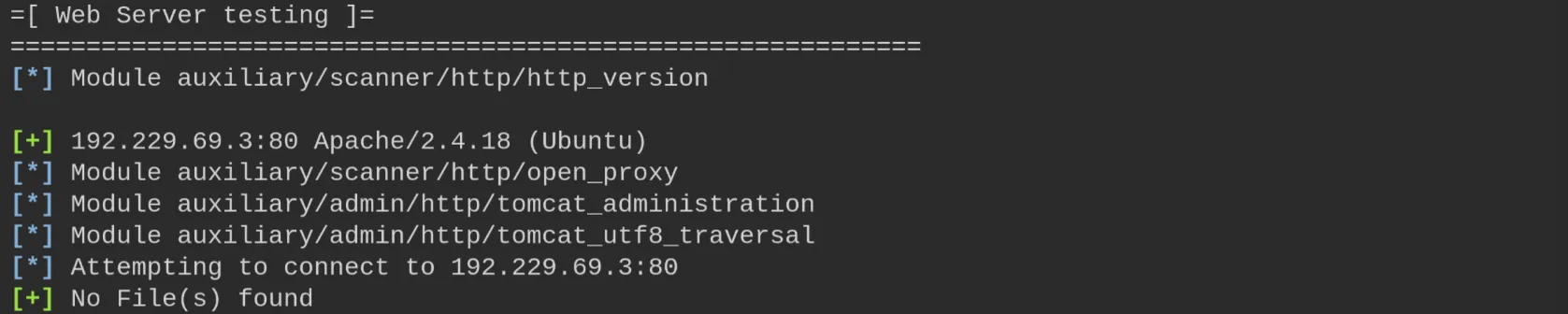

The Web Server tests fingerprint Apache/2.4.18 (Ubuntu).

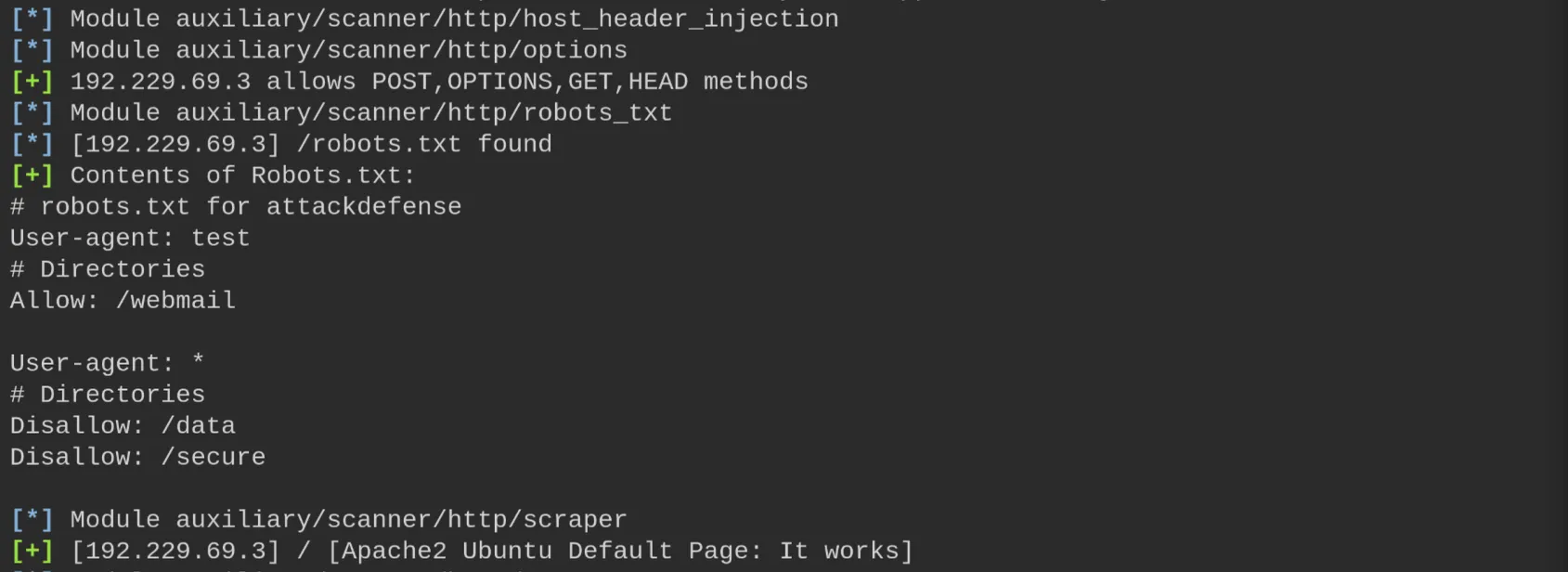

Further modules enumerate the allowed methods (POST, OPTIONS, GET, HEAD), read robots.txt (Allow: /webmail, Disallow: /data, /secure) and scrape the default page.

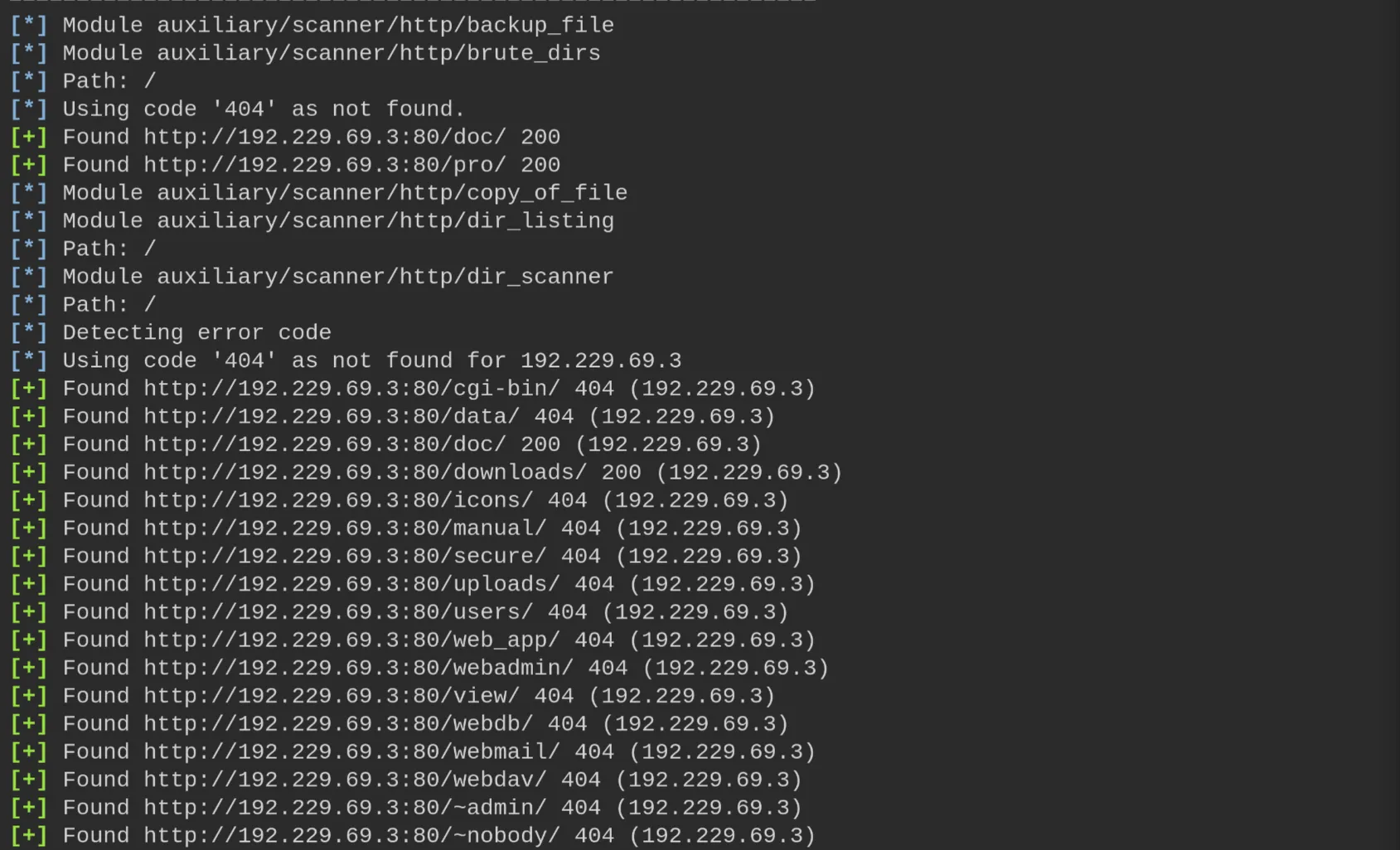

Directory brute-forcing discovers several paths (/doc, /pro, /downloads…).

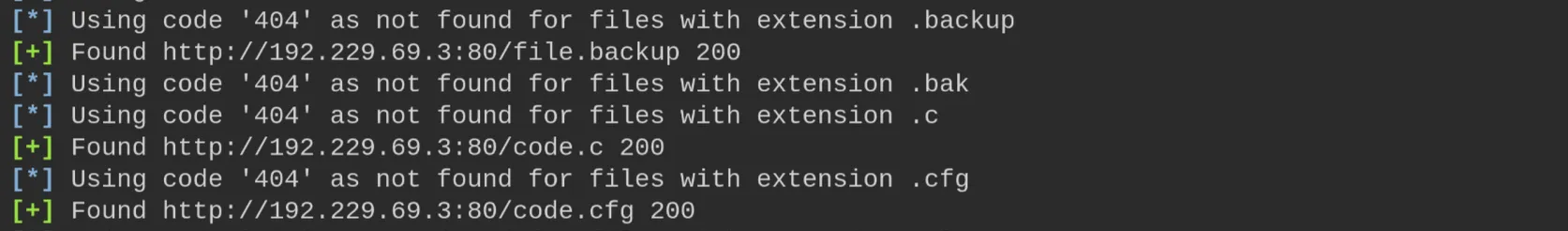

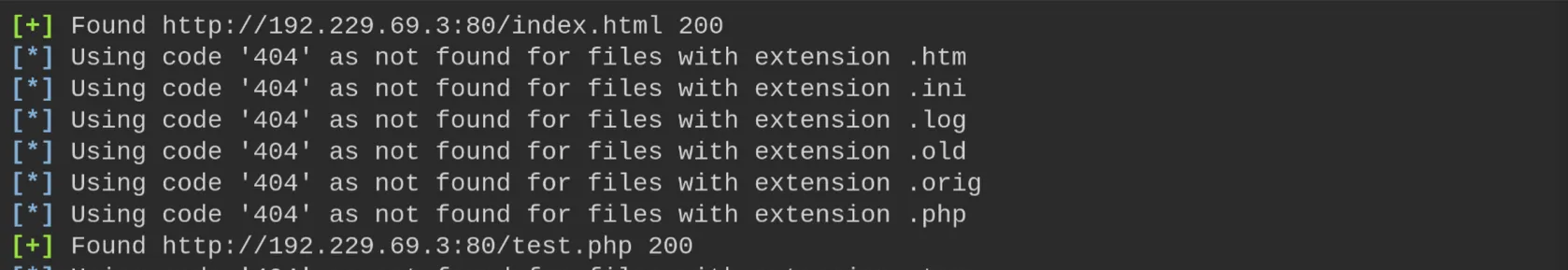

File scanning finds backup and source files (file.backup, code.c, code.cfg).

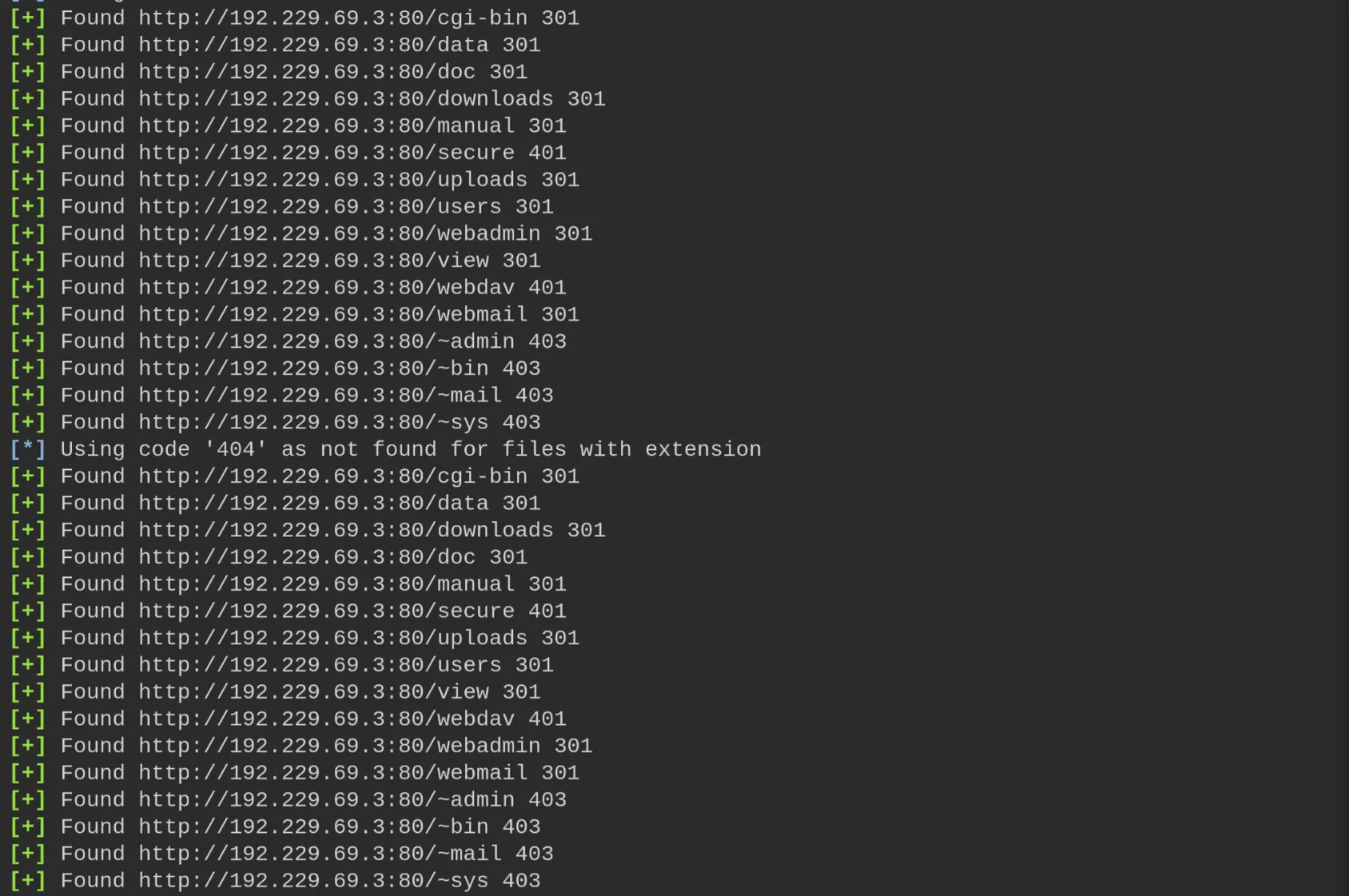

Directory enumeration returns the status codes for each path (301/401/403); /secure and /webdav return 401.

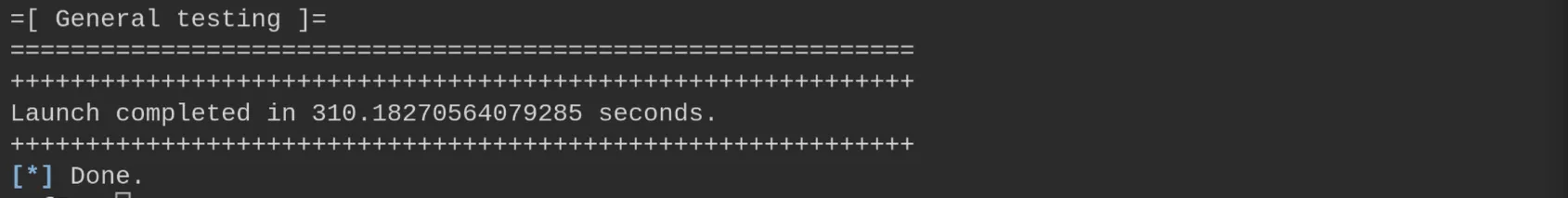

The scan completes after ~310 seconds.

7. Testing Writable Directories (http_put)

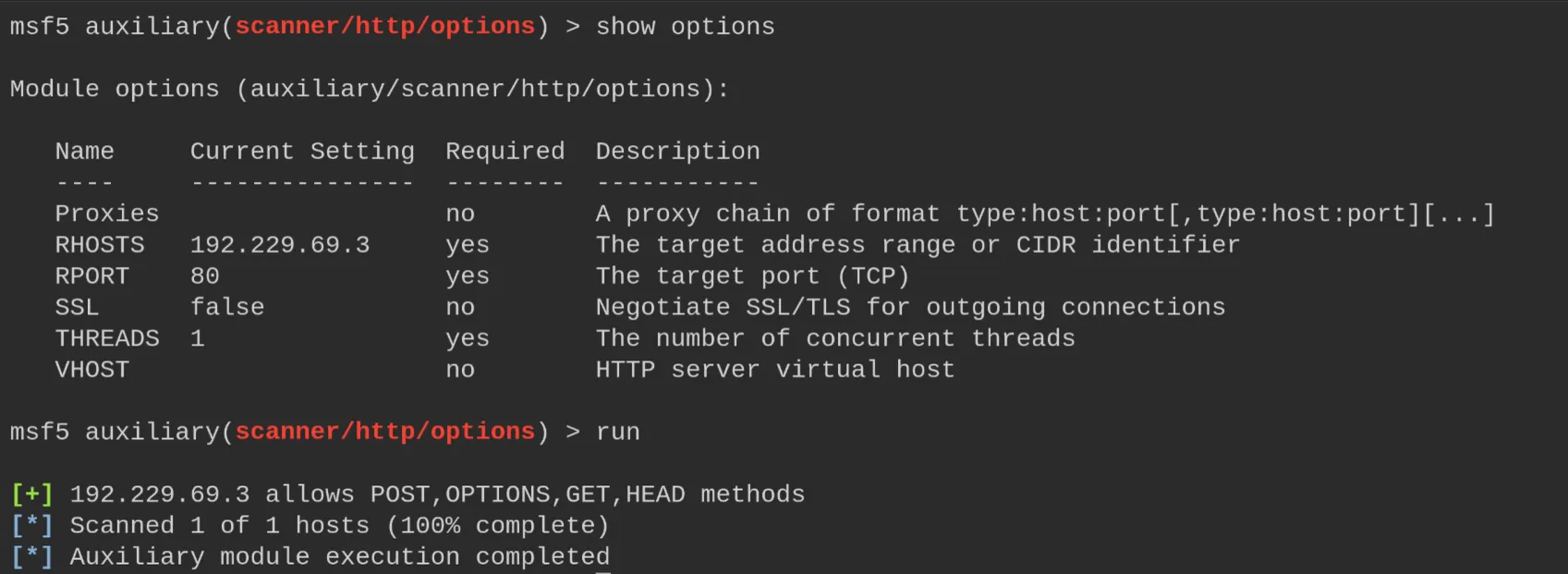

We first review the allowed HTTP methods with the options module.

use auxiliary/scanner/http/options
run

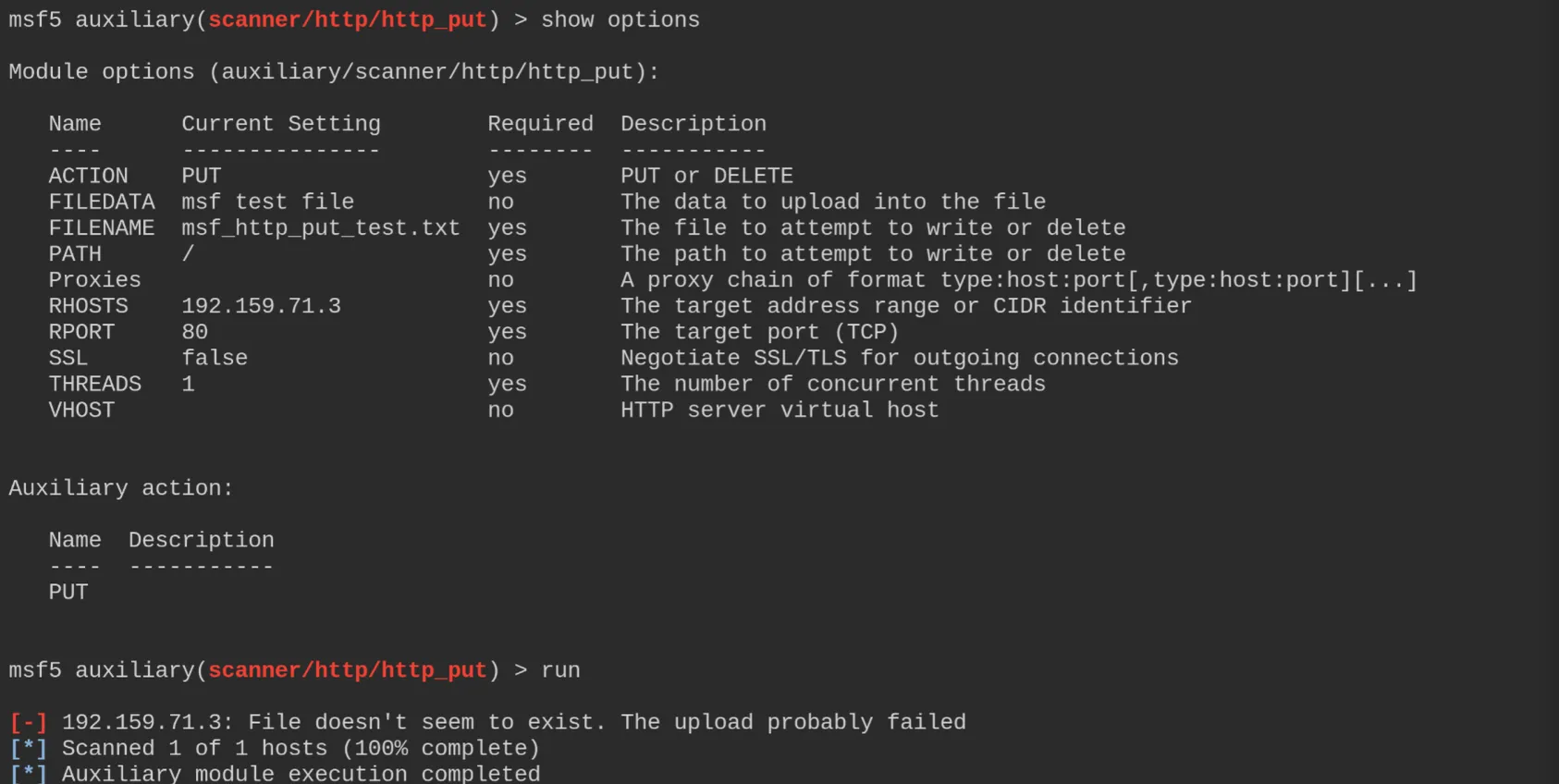

Then we try the http_put module to upload a file. On the web root (/) the upload fails.

use auxiliary/scanner/http/http_put
run

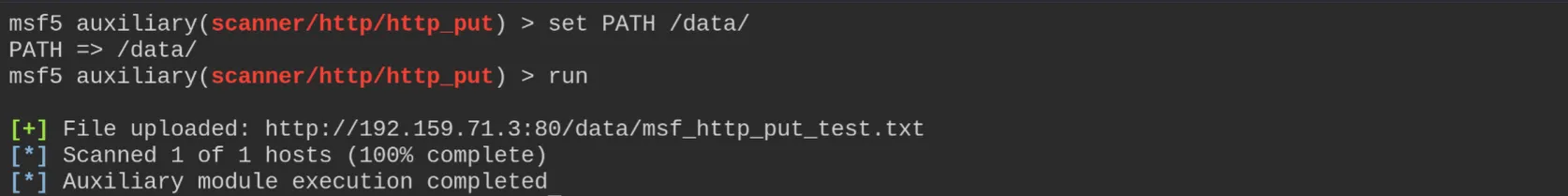

Setting the path to /data/ (writable) the upload succeeds.

set PATH /data/
run

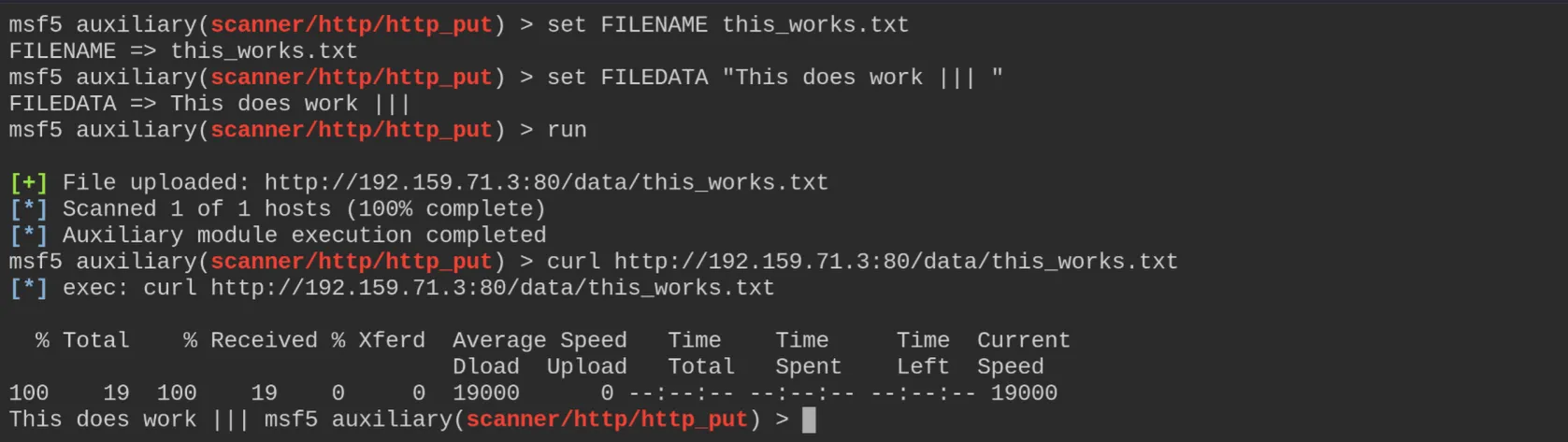

We confirm write access by changing the file name/data and reading it back with curl.

set FILENAME this_works.txt
set FILEDATA "This does work ||| "
run
curl http://192.159.71.3:80/data/this_works.txt

8. Remediation Recommendations

1. Disable the HTTP PUT/DELETE methods and make web directories non-writable to prevent arbitrary file uploads.
2. Remove sensitive/backup files (file.backup, code.c, code.cfg) from the web root and disable directory listing.
3. Protect restricted paths with real authentication: robots.txt is not a security control.
4. Suppress the server version banner and keep Apache up to date.
