Scan the Server II

Classification: Assessment Methodologies / Footprinting & Scanning
Target: demo.ine.local (192.200.111.3)

1. Executive Summary

The goal of this lab is to identify the ports running a Bind DNS server, a TFTP server and an SNMP server. Combining TCP and UDP Nmap scans with aggressive scanning and NSE discovery scripts, we locate DNS (177/tcp and 177/udp), SNMP (234/udp) and TFTP (134/udp).

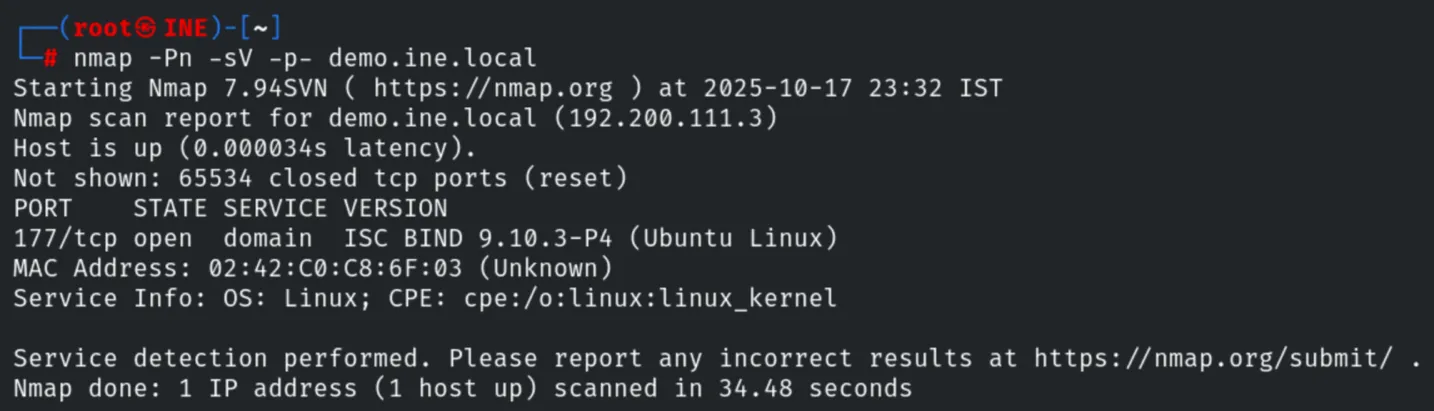

2. Host Discovery & TCP Scan

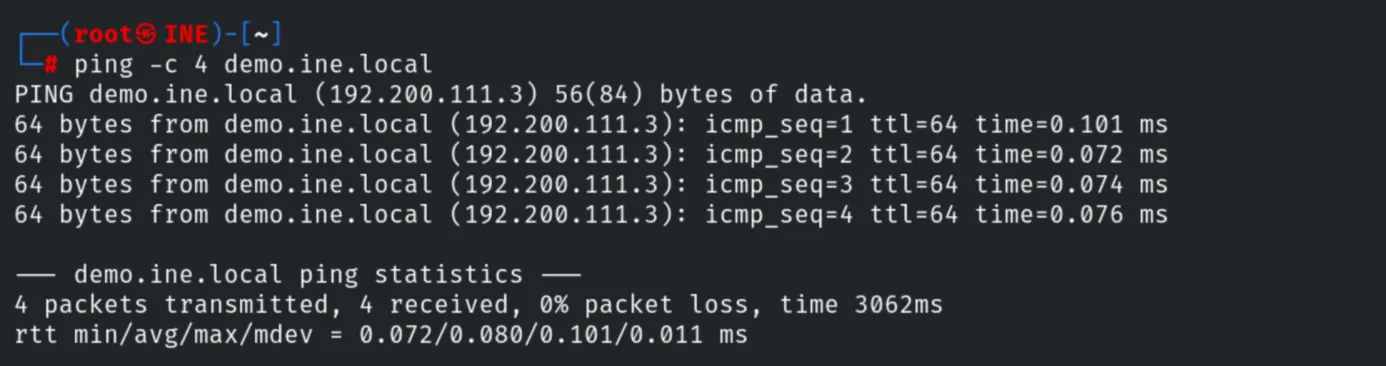

We check connectivity and run a full TCP version scan.

ping -c 4 demo.ine.local
nmap -Pn -sV -p- demo.ine.local

Nmap finds ISC BIND 9.10.3-P4 on port 177/tcp.

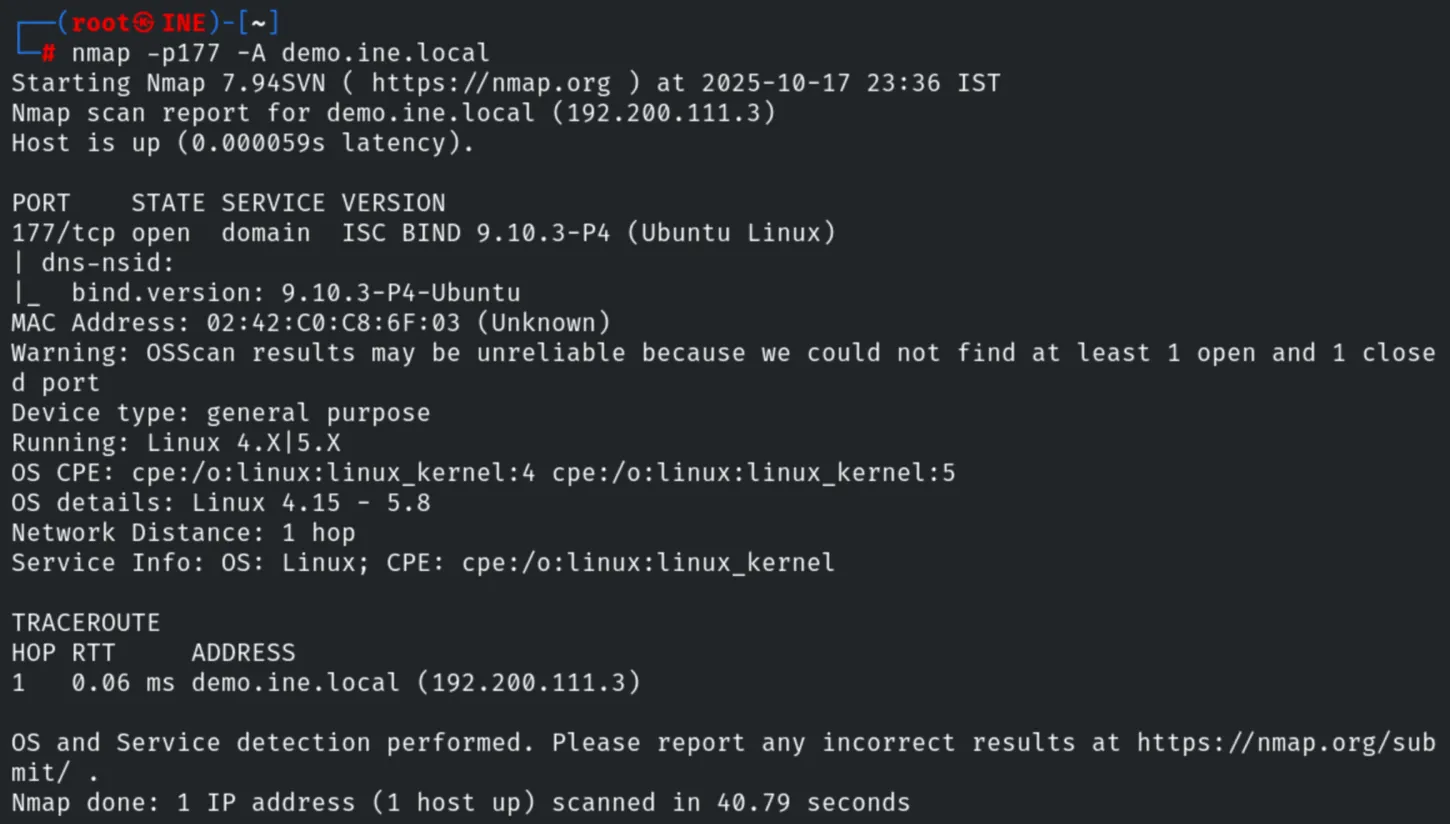

3. Aggressive Scan of the DNS Port

nmap -p177 -A demo.ine.local

The aggressive scan confirms bind.version: 9.10.3-P4-Ubuntu and provides OS details (Linux 4.15 - 5.8), network distance and traceroute.

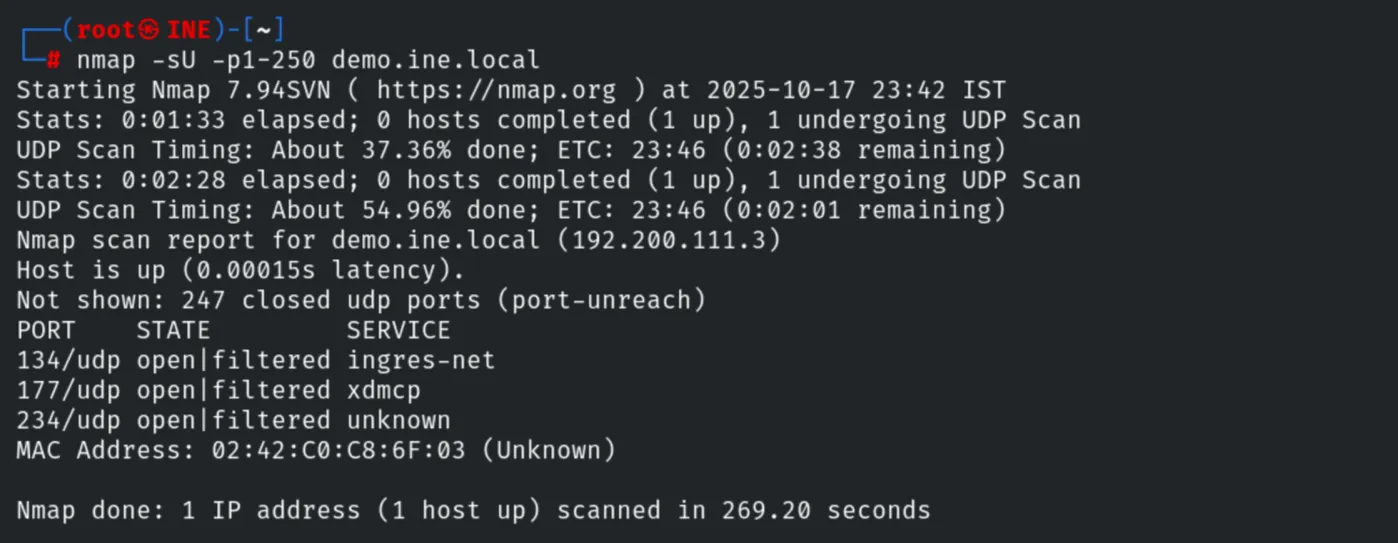

4. UDP Scan

A UDP scan reveals three more services on ports 134, 177 and 234.

nmap -sU -p1-250 demo.ine.local

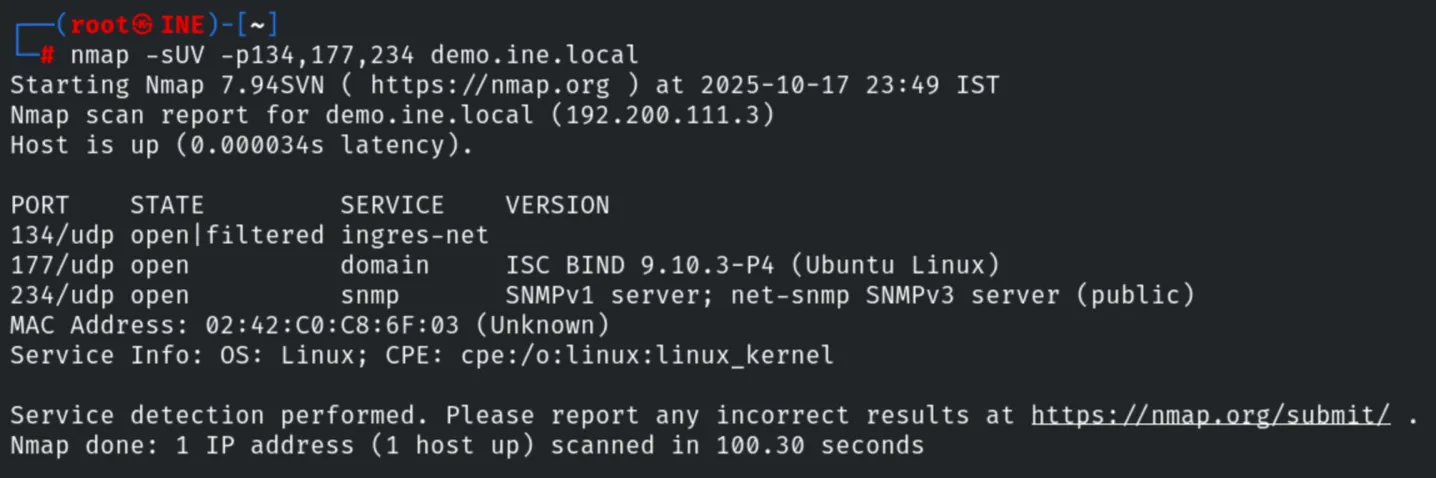

5. UDP Service Detection

nmap -sUV -p134,177,234 demo.ine.local

Ports 177 and 234 run DNS and SNMP (SNMPv1/SNMPv3, community public) respectively, so port 134 is the likely TFTP server.

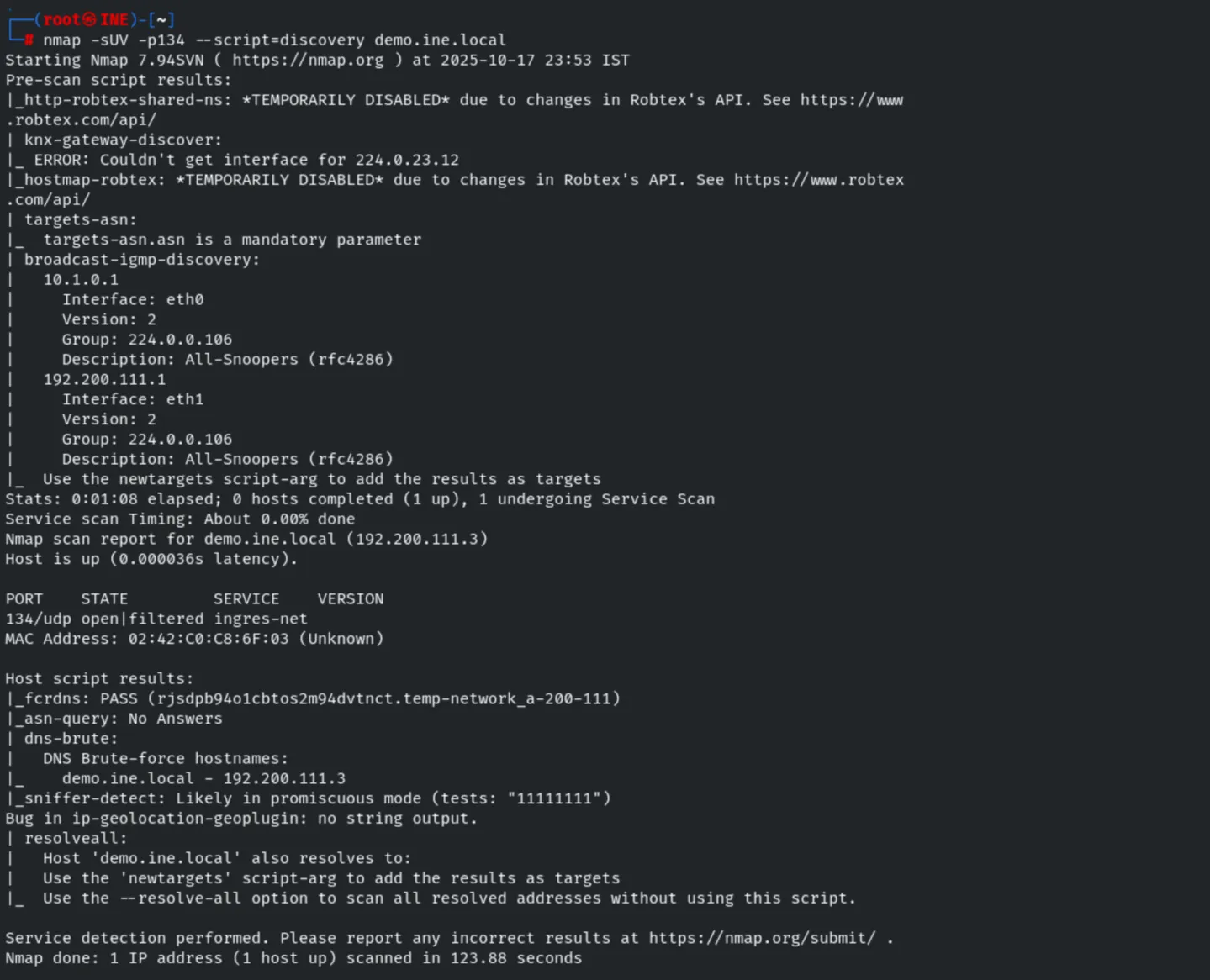

6. Confirming TFTP with a Discovery Script

nmap -sUV -p134 --script=discovery demo.ine.local

The discovery scripts confirm port 134 as the TFTP service.

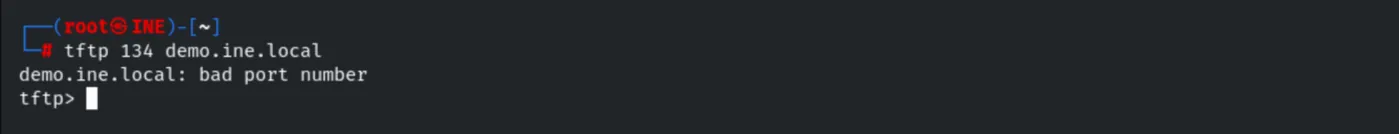

Finally we confirm access with the tftp client.

tftp 134 demo.ine.local

7. Remediation Recommendations

1. Restrict UDP services: DNS, SNMP and TFTP on UDP are easy to overlook; firewall and monitor them.
2. Harden SNMP: change the default public community string and prefer SNMPv3 with authentication and encryption.
3. Disable TFTP where possible; it has no authentication and transfers data in clear text.
4. Keep Bind updated and disable version disclosure (version.bind).
