Windows Recon: SMB Nmap Scripts

Classification: Assessment Methodologies / Footprinting & Scanning
Target: demo.ine.local (10.2.31.54 - Windows Server 2008 R2 / 2012, host WIN-OMCNBKR66MN)
Credentials provided: administrator:smbserver_771

1. Executive Summary

The goal is to fingerprint and enumerate the SMB service of a Windows target using Nmap NSE scripts. We confirm the host is up, discover the open SMB port, and then run a series of smb-* scripts to enumerate protocol dialects, the security configuration, active sessions, shares, domains, groups, services and share contents. The scans reveal dangerous defaults (SMBv1 enabled, message signing disabled) and, with the provided administrator credentials, full READ/WRITE access to C$.

2. Host Discovery & Port Scan

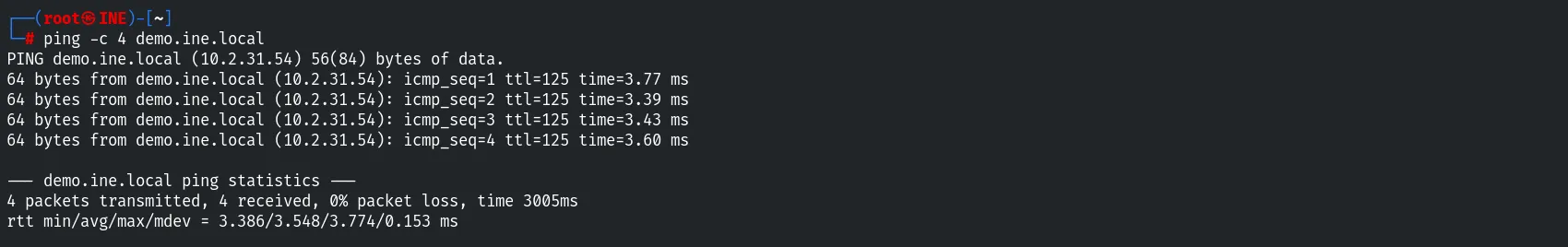

ping -c 4 demo.ine.local

The TTL of 125 is consistent with a Windows host.

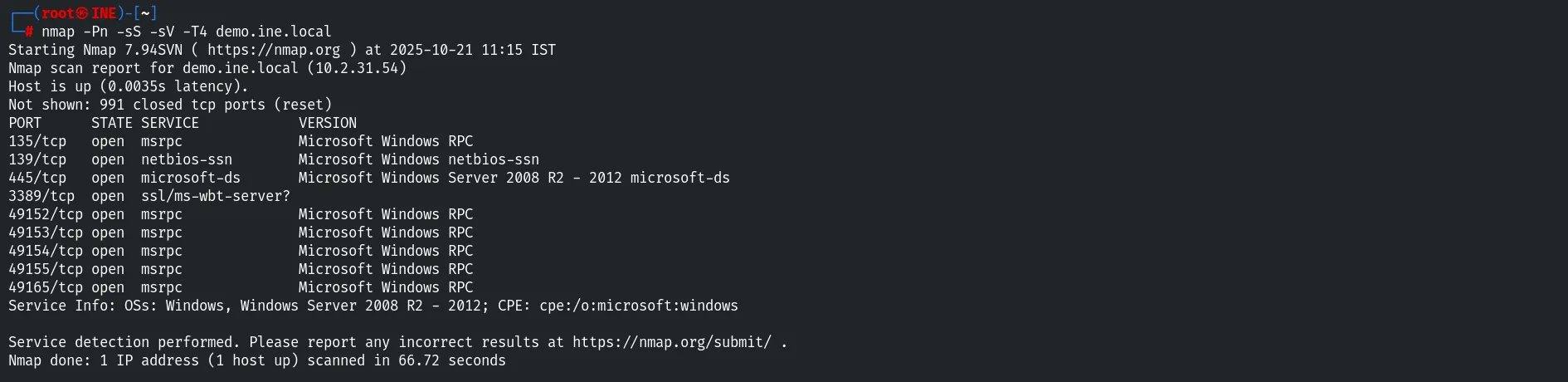

nmap -Pn -sS -sV -T4 demo.ine.local

Ports 135, 139, 445, 3389 and several high MSRPC ports are open; the OS is identified as Windows Server 2008 R2 - 2012.

3. SMB Protocol Dialects

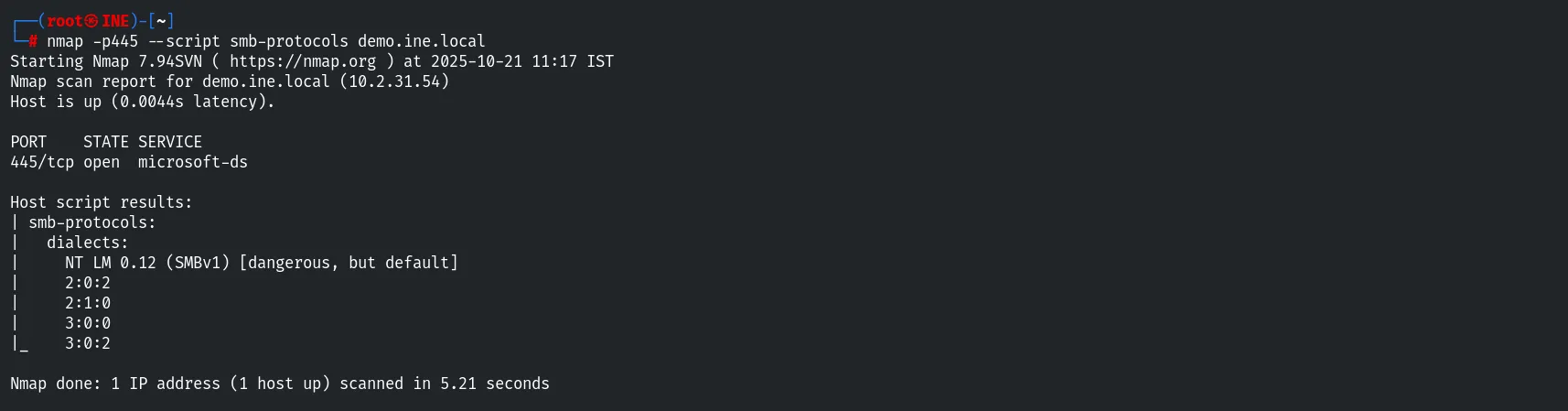

nmap -p445 --script smb-protocols demo.ine.local

The server supports NT LM 0.12 (SMBv1) [dangerous, but default] as well as SMB 2.0.2, 2.1, 3.0 and 3.0.2.

4. SMB Security Mode

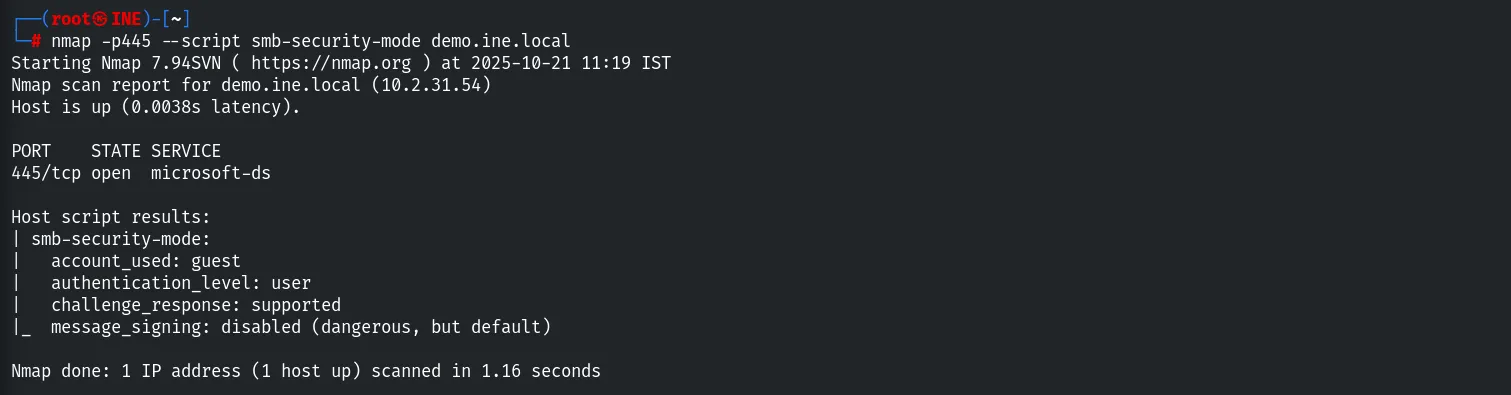

nmap -p445 --script smb-security-mode demo.ine.local

Message signing is disabled (dangerous, but default), which exposes the host to SMB relay attacks.

5. Session Enumeration

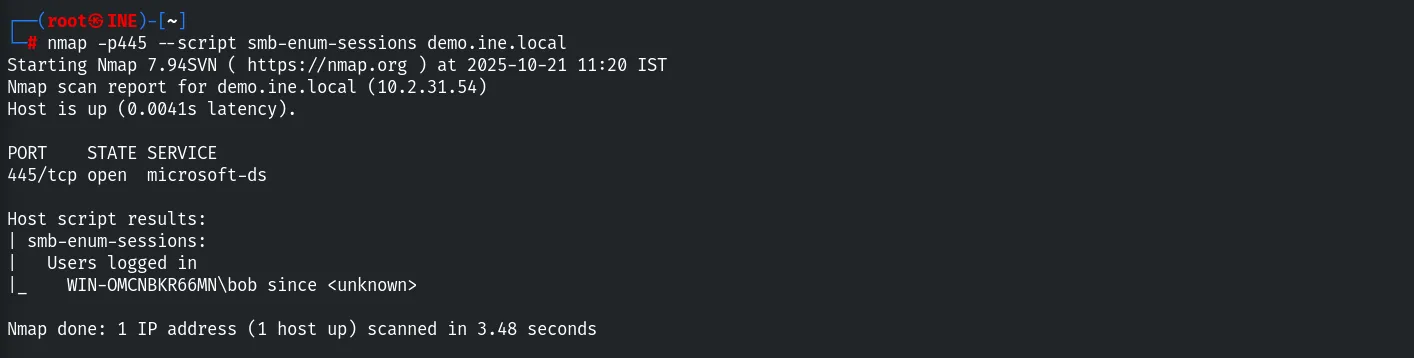

nmap -p445 --script smb-enum-sessions demo.ine.local

Without credentials we can already see that WIN-OMCNBKR66MN\bob is logged in.

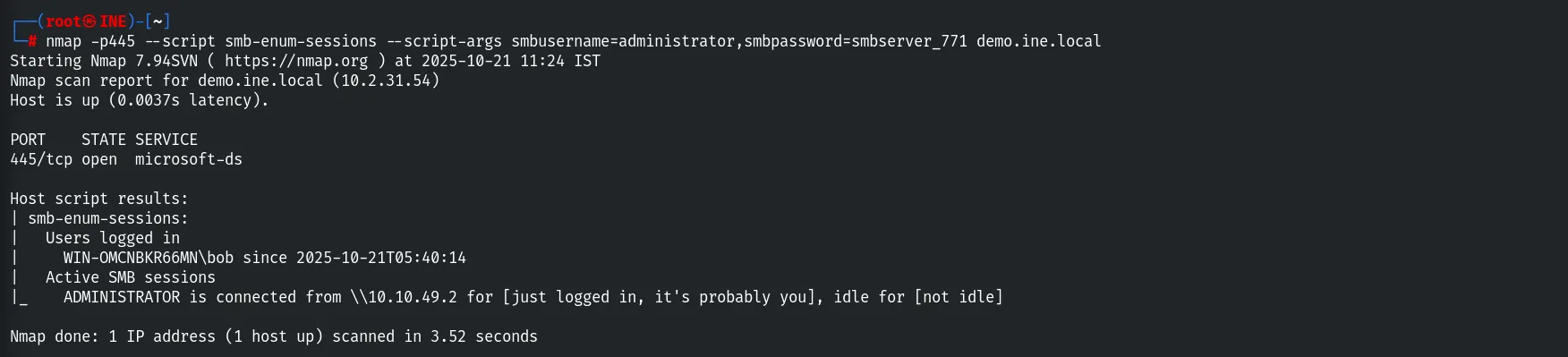

Supplying the provided credentials reveals additional detail, including the active ADMINISTRATOR session connected from 10.10.49.2.

nmap -p445 --script smb-enum-sessions --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

6. Share Enumeration (guest)

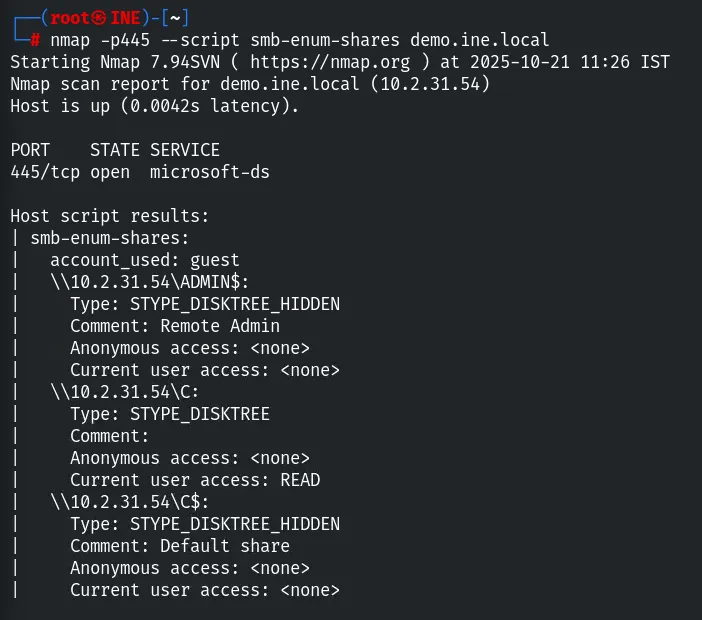

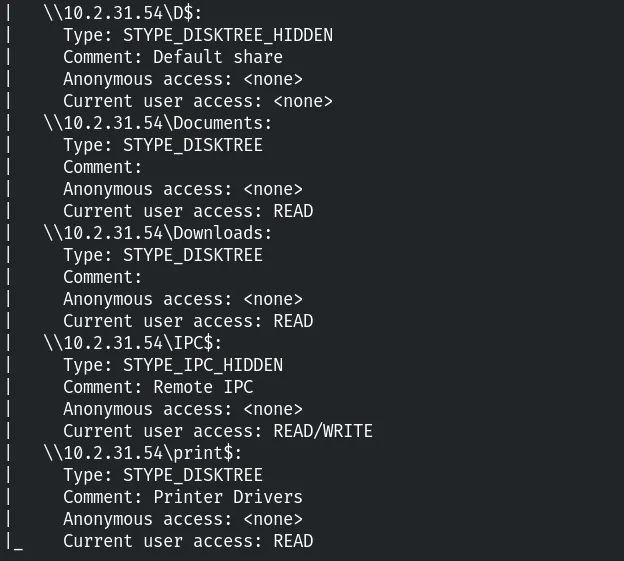

nmap -p445 --script smb-enum-shares demo.ine.local

As the guest account, we enumerate the shares and their access levels. IPC$ and the per-user Documents/Downloads shares are readable.

7. Share Enumeration (authenticated)

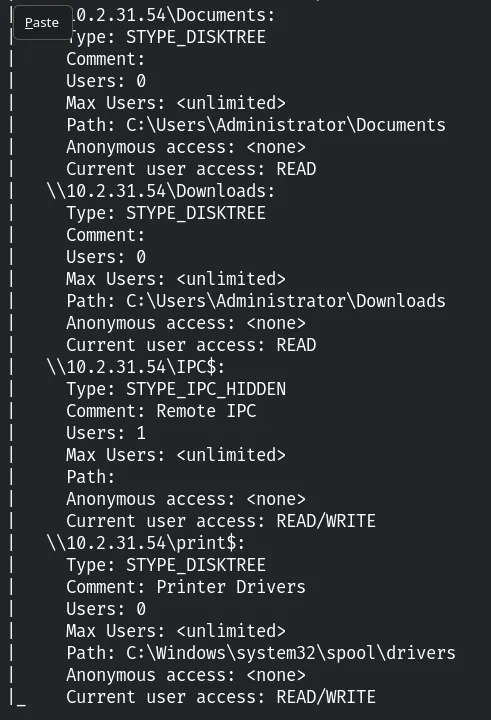

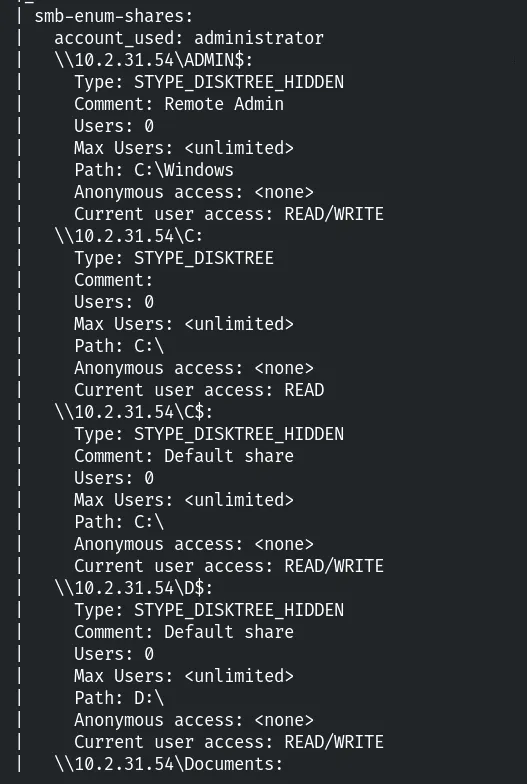

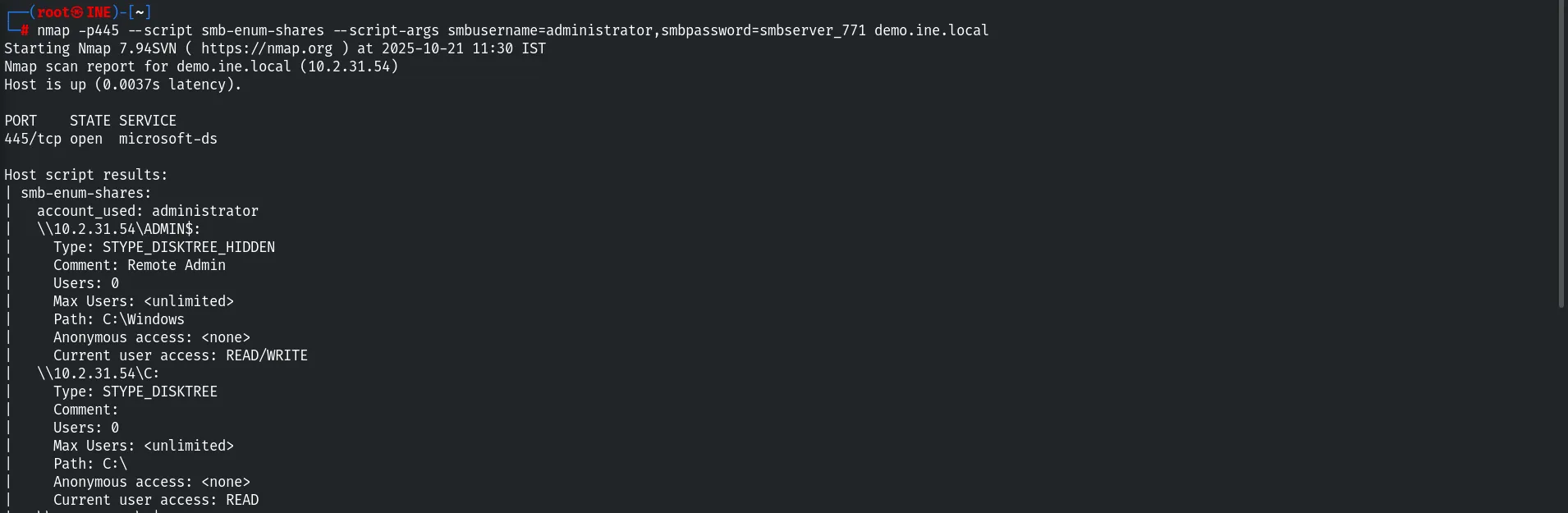

nmap -p445 --script smb-enum-shares --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

Authenticated as administrator, we now have READ/WRITE access to ADMIN$ (C:\Windows) and the entire C$.

8. Server, Domain, Group & Service Enumeration

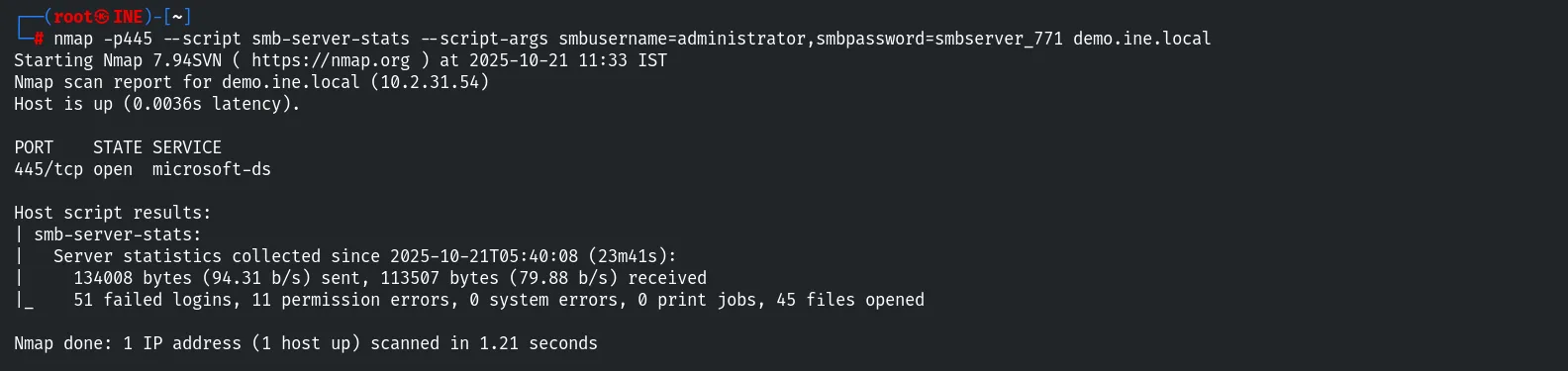

nmap -p445 --script smb-server-stats --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

Server statistics show 51 failed logins and 11 permission errors.

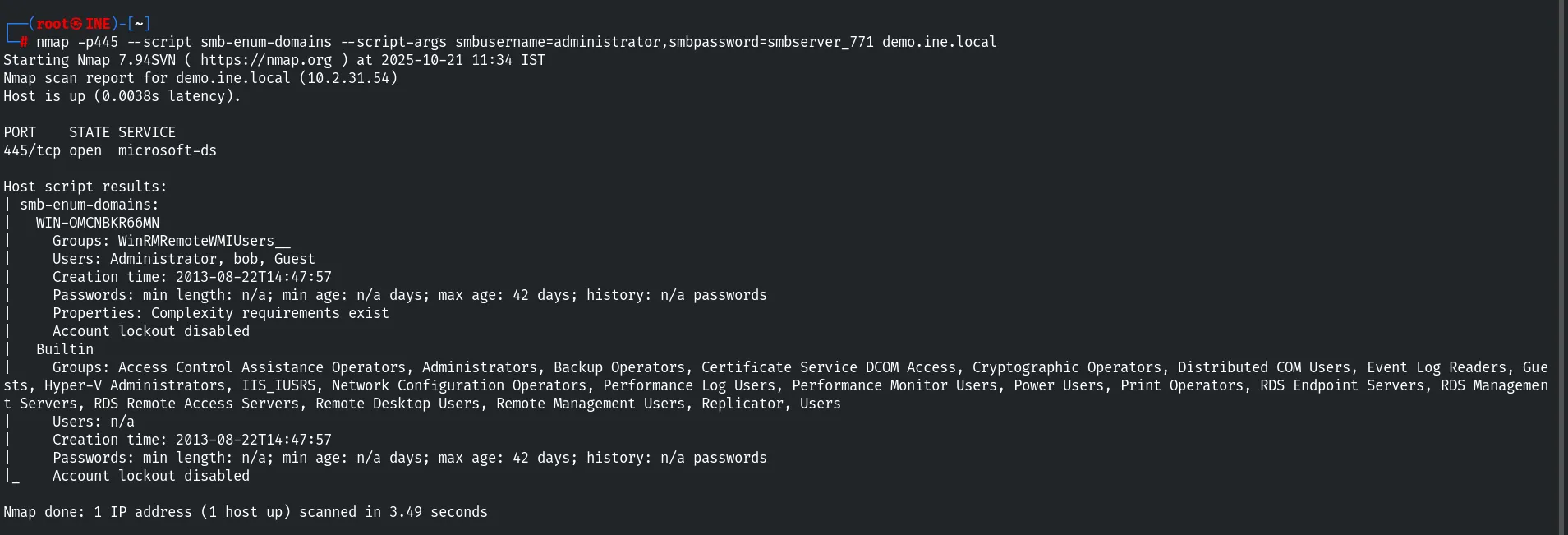

nmap -p445 --script smb-enum-domains --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

Domain information lists the users Administrator, bob, Guest, password policy (complexity required, account lockout disabled) and the built-in groups.

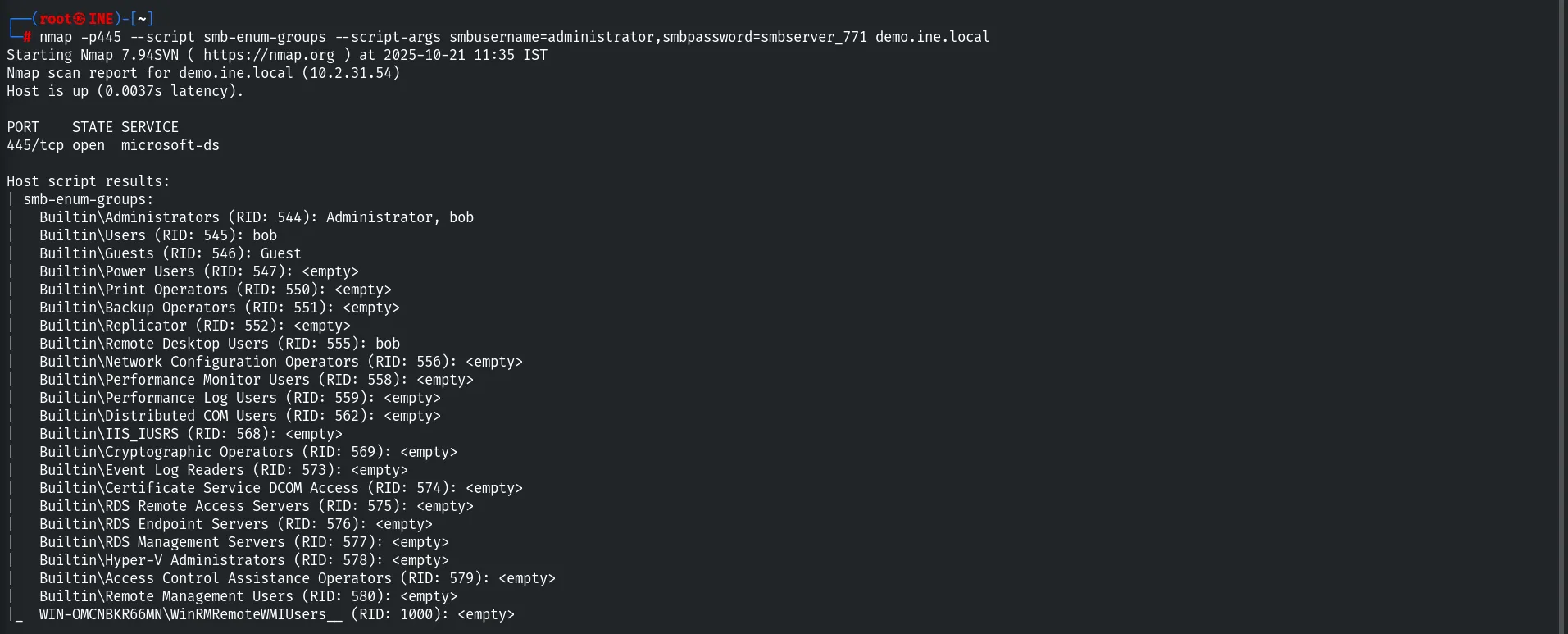

nmap -p445 --script smb-enum-groups --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

Group membership shows Administrators: Administrator, bob and Remote Desktop Users: bob.

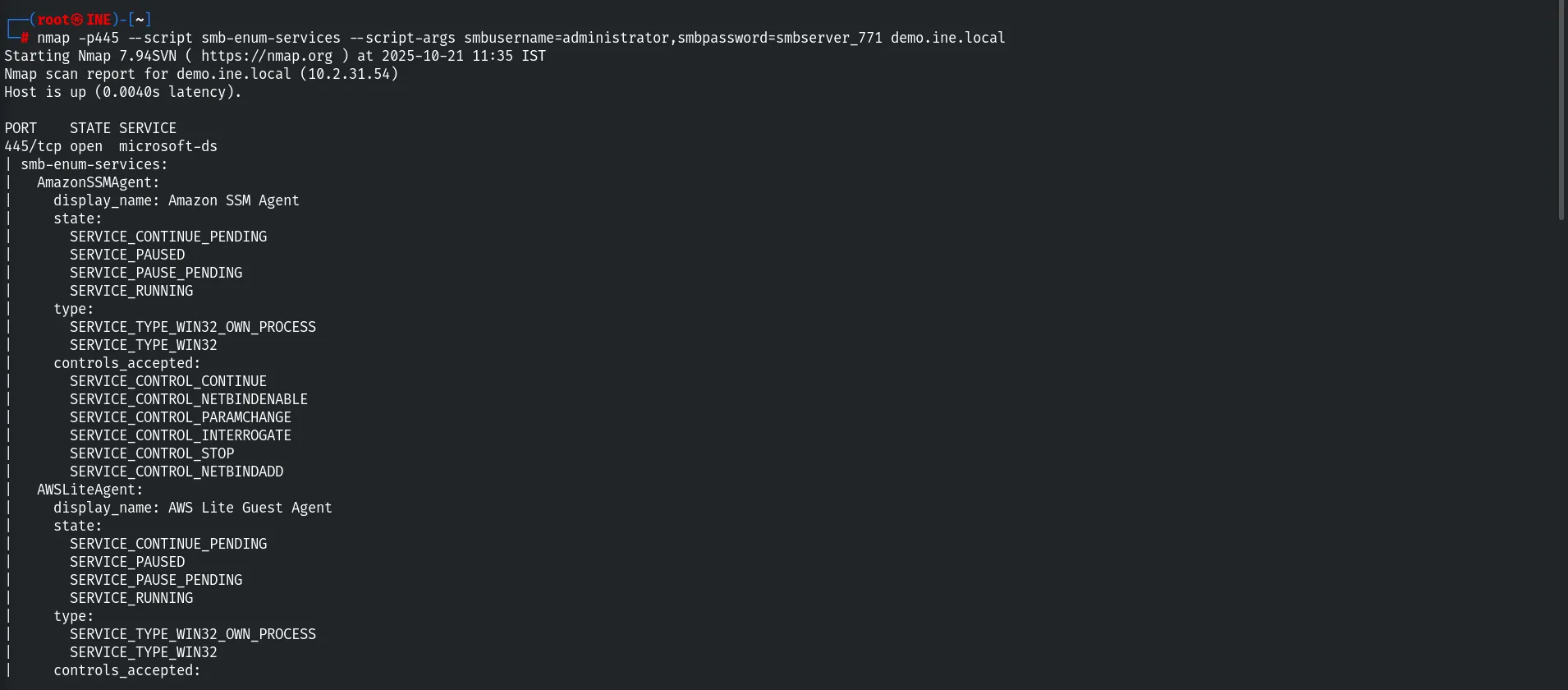

nmap -p445 --script smb-enum-services --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

Running services are enumerated (Amazon SSM Agent, AWS Lite Guest Agent…).

9. Listing Share Contents

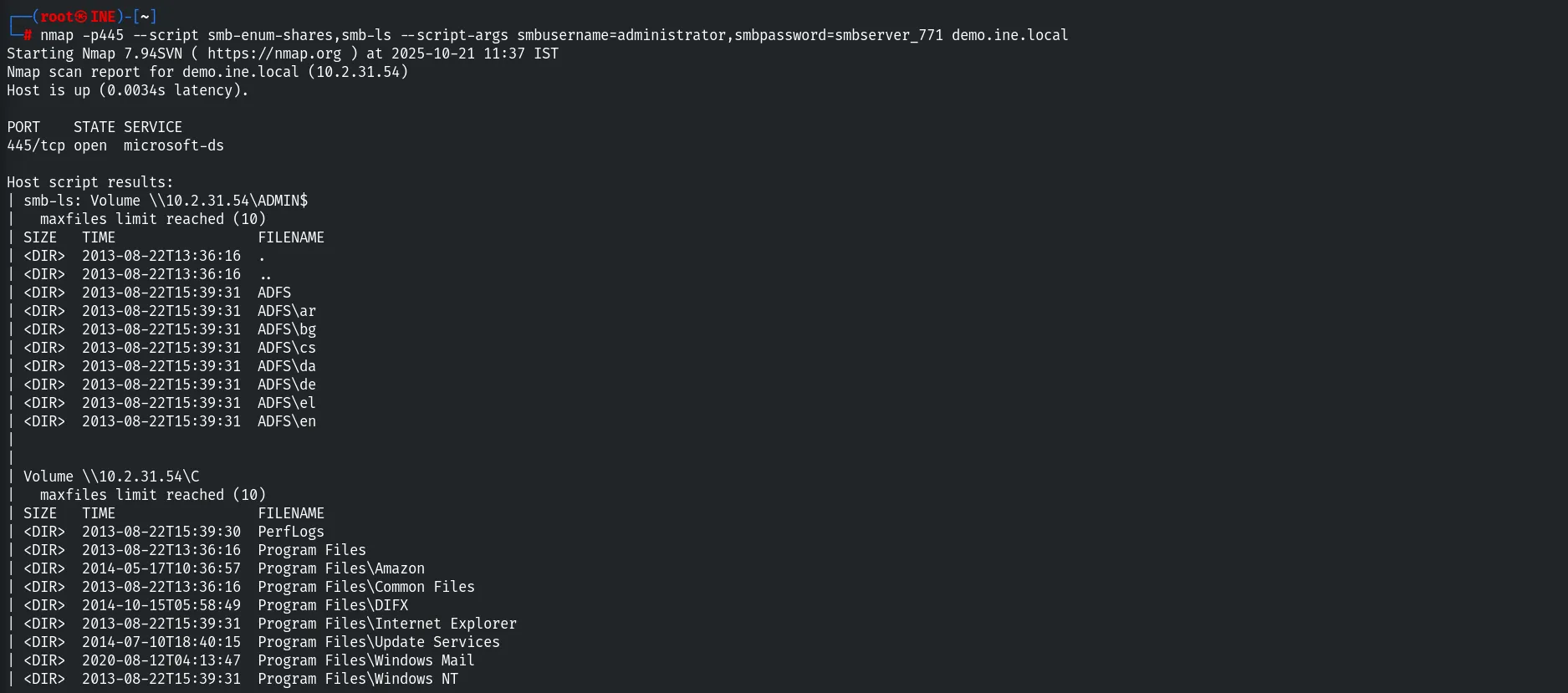

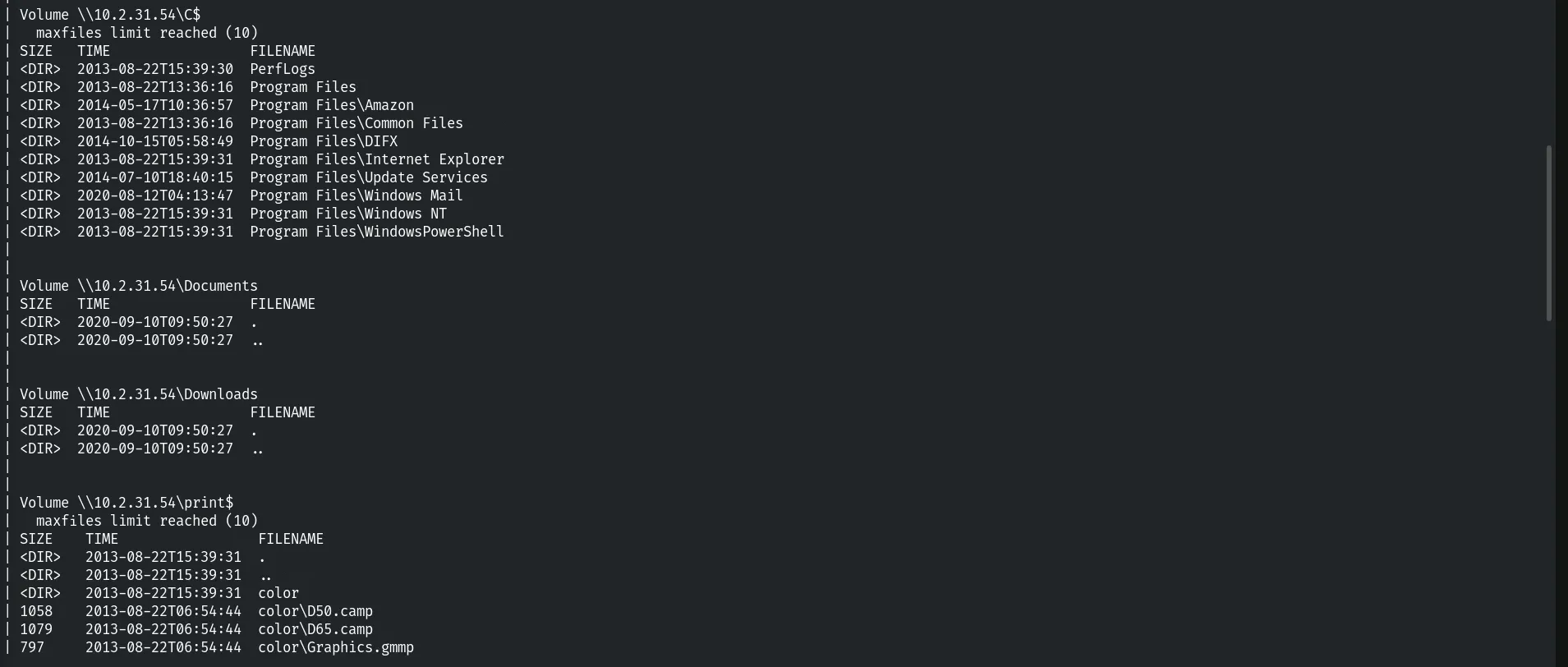

Finally we combine share enumeration with smb-ls to list the files inside each share.

nmap -p445 --script smb-enum-shares,smb-ls --script-args smbusername=administrator,smbpassword=smbserver_771 demo.ine.local

10. Remediation Recommendations

1. Disable SMBv1: the legacy NT LM 0.12 dialect is dangerous and should be turned off, leaving only SMB 2/3.
2. Enforce SMB signing: enable message signing to prevent SMB relay attacks.
3. Enforce strong credentials and account lockout: the administrator account used a weak password and account lockout is disabled.
4. Restrict share and administrative access: apply least-privilege permissions and limit who can reach ADMIN$/C$ over the network.
5. Limit anonymous/guest enumeration so recon scripts cannot map sessions, shares and users without authentication.
